High Speed Refrigerated Centrifuge

Touchscreen Large Capacity High Speed Refrigerated Centrifuge

The high-speed refrigerated centrifuge combines high-speed centrifugation with low-temperature control, and has both efficient separation and low-temperature protection functions. It is especially suitable for biological samples or chemical reagents that are sensitive to temperature. While achieving efficient separation, it effectively prevents samples from deteriorating or degrading due to temperature rise, ensuring the accuracy of experimental results and the integrity of samples.

Product Details

The high-speed refrigerated centrifuge combines high-speed centrifugation with low-temperature control, and has both efficient separation and low-temperature protection functions. It is especially suitable for biological samples or chemical reagents that are sensitive to temperature. While achieving efficient separation, it effectively prevents samples from deteriorating or degrading due to temperature rise, ensuring the accuracy of experimental results and the integrity of samples.

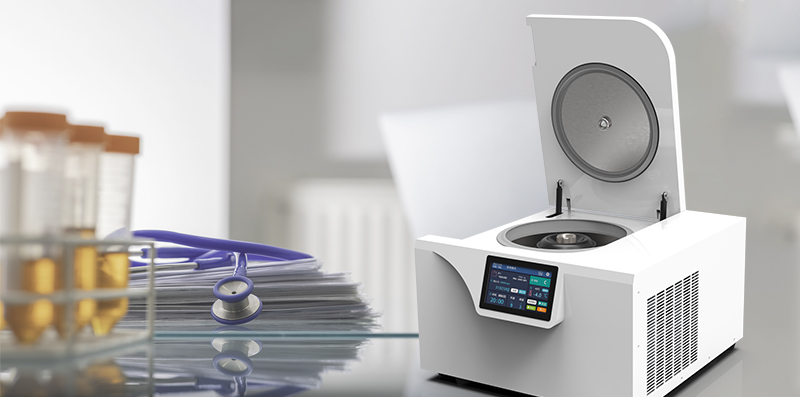

High Speed Refrigerated Centrifuge


In the biomedical field, high-speed refrigerated centrifuges are widely used in key steps including the extraction and purification of biological samples such as DNA, RNA, and protein, meeting various experimental needs such as molecular biology, cell biology, and biochemical research.


Welso offers a variety of high-speed refrigerated centrifuge models, including WHR1600, WHR1601, WHR1800, WHR1801, WHR2000 and WHR1500.

Among them, the maximum speed of WHR1600 and WHR1601 is 16000 rpm, the maximum speed of WHR1500 is 15000 rpm, and the maximum speed of WHR2000 can reach 20000 rpm. These models all support the configuration of angle rotors, horizontal rotors and enzyme-labeled rotors. Users can flexibly choose according to experimental needs. For specific parameter information, please refer to the product manual or contact technical support for details.

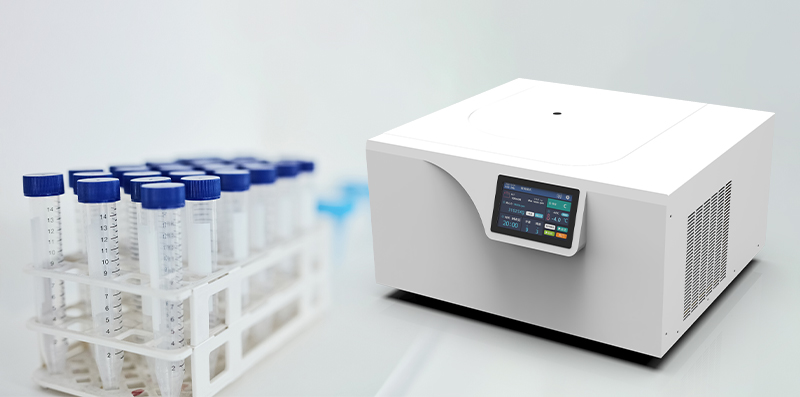

High Speed Refrigerated Centrifuge

Product Features

High-definition color touch screen: equipped with a high-sensitivity LCD touch screen, supports operation with gloves, user-friendly interface, easy and intuitive operation.

Intelligent control system: adopts single-chip microcomputer control and brushless motor drive, stable operation, low noise, high speed accuracy, no carbon powder pollution, and easier maintenance.

Double safety lock design: dual protection of structural self-locking and motor self-locking, with door lock safety detection function, real-time interface reminder when the door cover is not closed to ensure safe operation.

Efficient refrigeration system: imported Taikang compressor is selected, using environmentally friendly fluorine-free refrigerant, and the door cover can be closed after power-on to continue cooling and ensure constant cavity temperature.

Quick precooling function: It only takes 5-7 minutes to precool from room temperature (about 24℃) to 4℃, which greatly shortens the experimental preparation time.

Anti-condensation patented design: the motor area adopts a patented anti-condensation water structure to effectively prevent condensation water from corroding the bearings due to long-term operation and extend the service life of the equipment.

Automatic opening function: the door lock can be set to open automatically after centrifugation, simplifying the operation process and facilitating the placement of samples.

Corrosion-resistant structural materials: The inner cavity, air duct and parts in contact with sample volatiles are made of 304 stainless steel, which is corrosion-resistant, durable and easy to clean.

Convenient rotor design: The fixed-angle rotor seal is made of high-performance silicone fluorine rubber, and the rotor cover is a patented quick-open design, which supports one-handed operation and improves experimental efficiency.

Automatic rotor identification: Intelligently identify the rotor type and automatically correct the wrong parameters. The horizontal rotor supports mixed operation within 10g symmetrical error and 200g diagonal error.

Multi-mode display and setting: Supports real-time switching display of speed and centrifugal force, and can directly set the centrifugal force start, which is more flexible to operate.

Multiple safety protections: It has multiple alarm and protection functions such as door cover not closed, operation error, overspeed, overtemperature, imbalance, etc., and abnormal situations are promptly reminded by sound and indicator lights.

Adjustable lifting and lowering speed and gradient centrifugation: The lifting and lowering speed rate is adjustable to effectively prevent sample suspension, and supports setting gradient centrifugation programs to ensure the best separation effect.

Support upgrade and expansion: The upgrade port is reserved to facilitate subsequent function optimization and performance improvement to meet long-term use needs.


Product Parameters

Model

WHR1500

WHR1600

WHR1601

WHR1800

WHR1801

WHR2000

Max Capacity

12*5mL

4*300mL

6*100mL

4*750mL

6*100mL

4*750mL

Max Speed

15000rpm

16000rpm

16000rpm

18000rpm

18000rpm

20000rpm

Max RCF

22000xg

35091Xg

25043xg

35091xg

31695xg

39130xg

Temperature Range

-20℃~ +40℃

Temperature Accuracy

±1℃

Speed Accuracy

±10r/min

Time Setting

0-99min59s

Soft Brake

9 ramps

Noise

≤62dB(A)

≤65dB(A)

≤65dB(A)

≤65dB(A)

≤65dB(A)

≤65dB(A)

Power Supply

AC220V 50Hz /110V 60HZ

Power Consumption

700W

1300W

1300W

1300W

1300W

1300W

Net Weight

35.5kg

53kg

53kg

81kg

53kg

91kg

Packing Size (mm)

550*330*240

550*550*315

550*550*315

586*640*328

550*550*315

612*680*352

FAQ

Q:How to clean the rotors?

A:Use alcohol or Neutral Detergent to clean it. User can also use brush to clean it.

Q:What is the working temperature of refrigerated models?

A:Usually you can set up to -20℃. With rotor, it can go down to -9℃. But most users use around 4 or 5 ℃.

Q:Do Welso centrifuges can accommodate both swing rotor and angle rotor?

A:It depends on different models. Some models can use both swing and angle rotor, some models can use only angle rotor.

Q:How would you like to pack the centrifuge?

A:All centrifuges we packed in carton box and then packed in wooden case.

Q:What is the delivery time for the centrifuge?

A:For small benchtop types, usually we have stock, so we can deliver in around 3-7 days. For floor standing one, it takes aroudn 25 -30 days.
