Autoclave

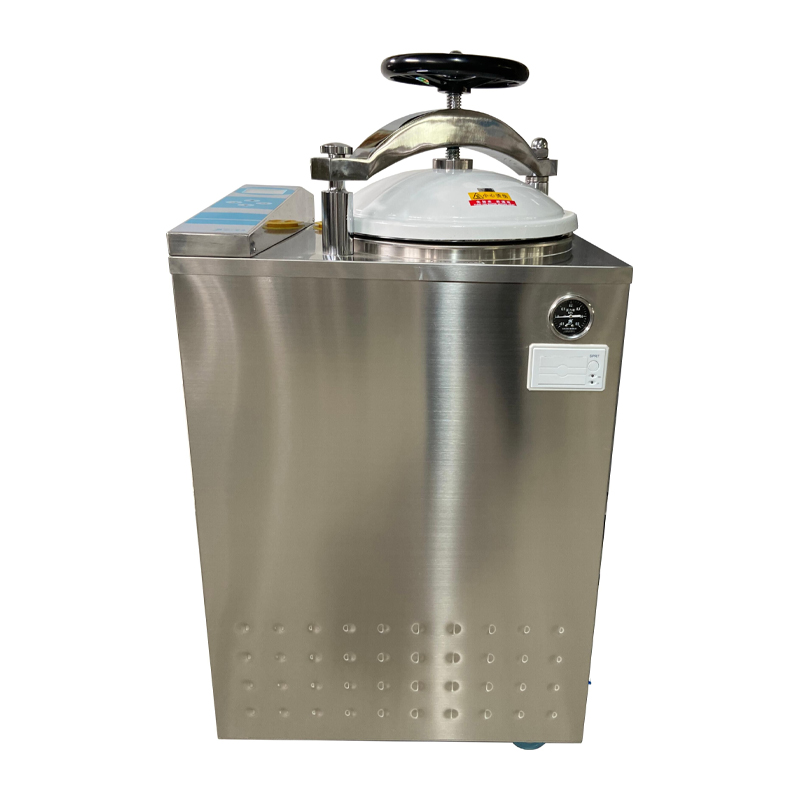

This vertical steam sterilizer is designed with advanced automation and intelligent control technology to ensure efficient, safe, and reliable sterilization performance. Equipped with a user-friendly touch control panel and digital display, it allows real-time monitoring of key parameters throughout the entire sterilization process.
Product Details
This vertical steam sterilizer is designed with advanced automation and intelligent control technology to ensure efficient, safe, and reliable sterilization performance. Equipped with a user-friendly touch control panel and digital display, it allows real-time monitoring of key parameters throughout the entire sterilization process.
The system integrates fully automatic operation including water inlet, pulse vacuum, heating, sterilization, drainage, exhaust, and vacuum drying. With a powerful pulse vacuum system, it effectively removes cold air from hollow instruments and porous materials, ensuring thorough sterilization results.
Constructed with high-quality stainless steel and equipped with multiple safety and functional features, this sterilizer is ideal for hospitals, laboratories, research institutes, and other medical environments.
Key Features
Fully Automatic Control System
Computer-controlled operation with touch keys and digital display for easy and precise control.
Real-Time Parameter Monitoring
Dynamically displays temperature, pressure, time, vacuum level, and full sterilization cycle status.
Advanced Pulse Vacuum System
Three-stage pulse vacuum reaches up to -0.081 MPa, ensuring complete air removal for hollow and porous loads.
Multiple Sterilization Programs
Includes preset programs for instruments, dressings, rubber, and liquids, with customizable options.
Efficient Vacuum Drying
Multi-stage vacuum drying after sterilization ensures dry and ready-to-use instruments.
PT/TT Testing Port
Convenient connector for validation and testing procedures.
Bacteria Filtration System
Ensures sterile air enters the chamber, preventing secondary contamination.
Quick-Open Door Design
Handwheel-type structure with self-inflating seal for enhanced safety and tight sealing.
High-Efficiency Heating System
Immersed heating design provides rapid and uniform heat distribution.
Eco-Friendly Operation
Internal steam-water circulation system prevents steam discharge, maintaining a clean and dry environment.
Automatic Alarm System
Automatically shuts off with an audible alert upon cycle completion.
Durable Construction
Made of high-quality stainless steel with double-layer stainless steel baskets.
Optional Printer Function
Built-in or external printer available for cycle data recording upon request.
Technical Data
Model | WHV50 | WHV75 | WHV100 |
Chamber Volume | 50L(φ340×650)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
Working Pressure | 0.22MPa | 0.22MPa | 0.22MPa |
Working Temperature | 134℃ | 134℃ | 134℃ |
Heat Average | ≤±1℃ | ≤±1℃ | ≤±1℃ |
Timer | 0～99min | 0～99min | 0～99min |
Adjustment Of Temperature | 105～134℃ | 105～134℃ | 105～134℃ |
Power | (3.2+1.6)KW /AC220V.50Hz | (3.2+1.8)KW /AC220V.50Hz | (3.2+1.9)KW /AC220V.50Hz |
Overall Dimension | 690*470*1140(mm) | 730*510*1250(mm) | 730*550*1305(mm) |
Transport Dimension | 760*550*1290(mm) | 820*600*1380(mm) | 840*640*1410(mm) |
G.w/N.w | 120Kg/ 100Kg | 140Kg/ 118Kg | 160Kg/ 128Kg |
