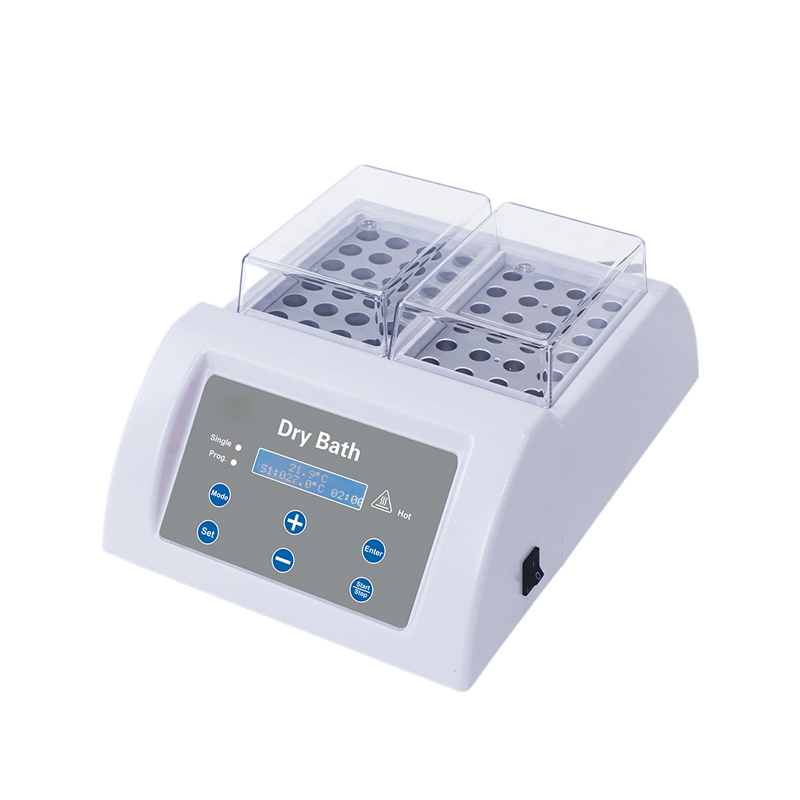

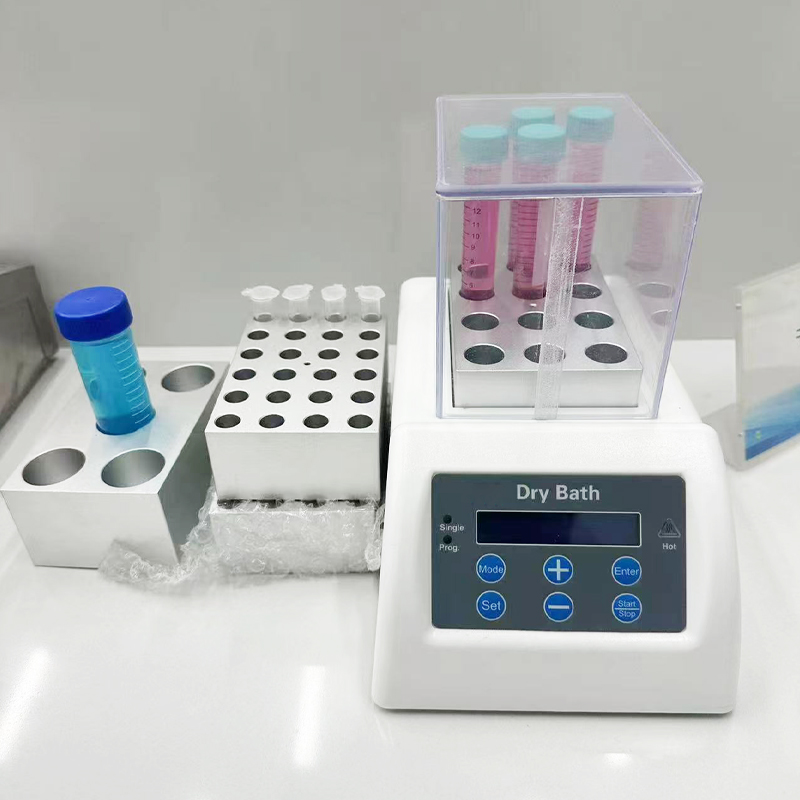

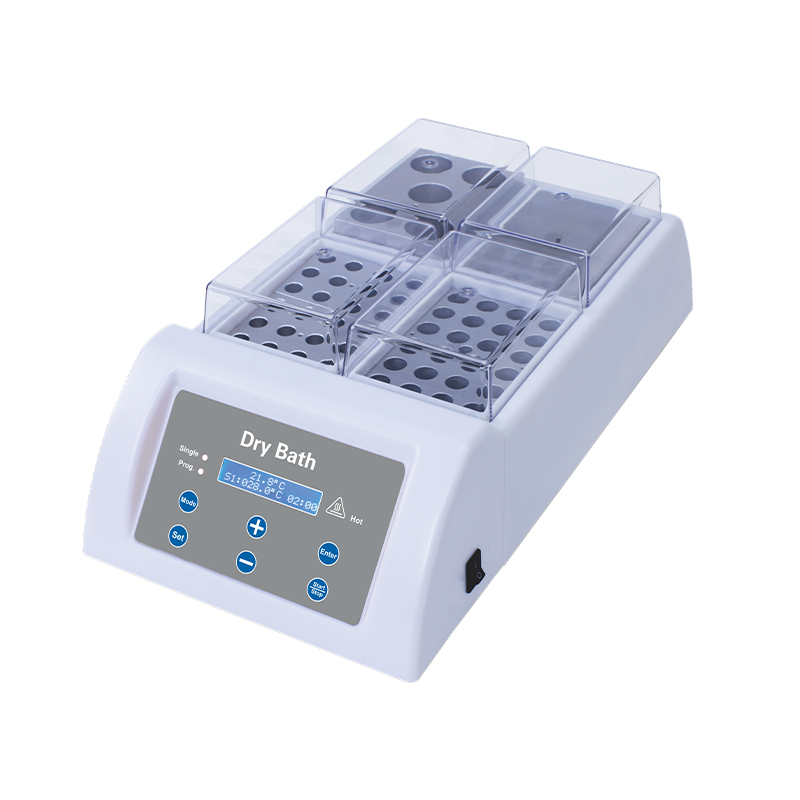

Dry Bath
WDB series metal dry thermostats are widely used in sample preservation (suitable for various analytical instruments), nucleic acid and protein denaturation, PCR reaction, gel electrophoresis pre-denaturation, inactivation experiment, cross-matching, Rh blood type sample research and cholesterol analysis.
Product Details
WDB series metal dry thermostats are widely used in sample preservation (suitable for various analytical instruments), nucleic acid and protein denaturation, PCR reaction, gel electrophoresis pre-denaturation, inactivation experiment, cross-matching, Rh blood type sample research and cholesterol analysis.
Its application covers pharmaceutical, chemical, food safety, quality inspection, environmental monitoring and other industries. The WDB series uses microcomputer precise temperature control, supports temperature gradient program setting, and can heat multiple modules at the same time. It is a market-leading multi-functional metal bath solution, which significantly improves laboratory work efficiency and stability.
Product Features
Microprocessor precise temperature control
Equipped with advanced microprocessor control system, it can achieve high-precision and fast-response temperature regulation to ensure consistency of experimental conditions.
Professional heating elements and high-quality module materials
Adopt high-performance special heating elements and high-quality aluminum alloy modules, with excellent temperature uniformity and heat conduction efficiency.
Over-temperature protection and alarm function
Built-in multiple safety protection mechanisms, automatic over-temperature detection and alarm prompts, to ensure safety during use.
Simple temperature calibration
Supports fast temperature calibration, simple operation, convenient for users to make temperature corrections at any time according to actual needs.
Multi-step program setting function
Supports multi-step temperature program setting for complex experimental processes, providing flexible solutions for applications such as sample incubation and reaction control.
Easy-to-replace module design
Module replacement is convenient, easy to clean and disinfect, reduces the risk of cross contamination, and improves ease of use.
Multiple module selection and customization services
Provide a variety of standard module types, and customize modules according to user specific needs to meet the temperature control requirements of different application scenarios.
Specification
Model | WDB300 | WDB400 | WDB500 | WDB600 |
Temp. Range | Ambient+5°C~120℃ | |||
Temp. Fluctuation | @50~100°C:≤+0.15℃℃，@100.1~120°C:≤+0.2°C | |||
Heating Up Time | From Room Temp 20°c to 120°c, ≤15min | From Room Temp 20°c to 120c, ≤25min | ||
Temp. Uniformity | @40°C:≤+0.3°C | @40°C:≤+0.5°C | ||
Temp. Accuracy | 0.1°C | |||
Display | LCD | LED | LCD | |
Included Accessory Standard in Packaging | DBA05*1 | DBA05*1 | DBA05*2 | DBA05*4 |
Program | 6 Sections | Single program | 6 Sections | |
Timer | 99h59min or Continuous | \ | 99h59min or Continuous | |
IP class | IP21 | |||
No.of block | 1 | 2 | 4 | |
Ambient | 5°C~40°C | |||
Relative Humidity | ≤85% | |||
Outside Dimensions | 262*143*96mm | 320*220*111mm | 430*220*111mm | |
Power | 100W | 150W | 300W | |
Power supply | AC220+22V50Hz160Hz | |||
Net weight | 1.2kg | 3kg | 4.5kg | |
