Products
Emulsifier

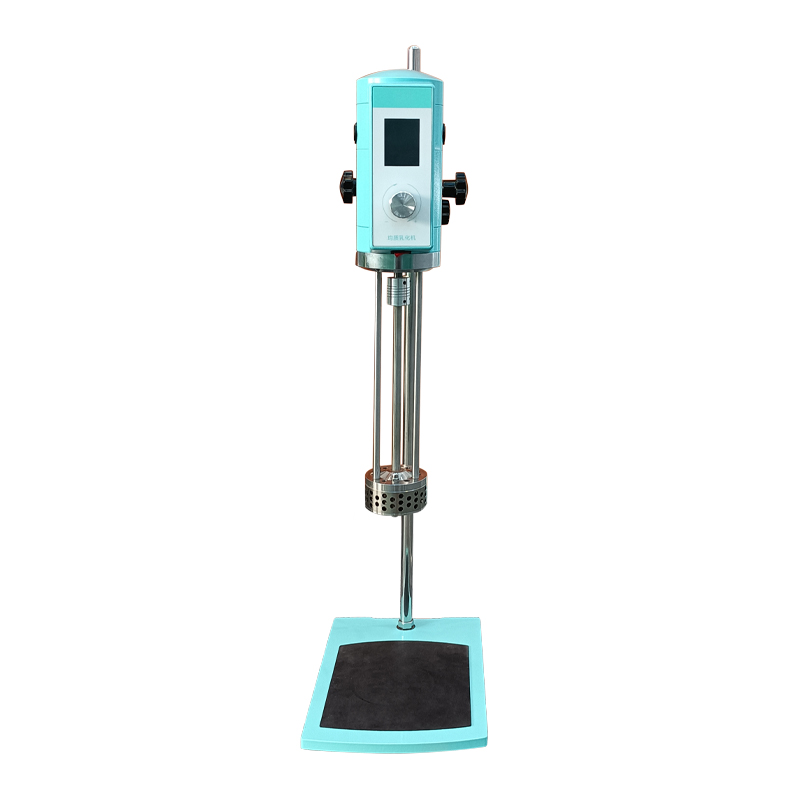

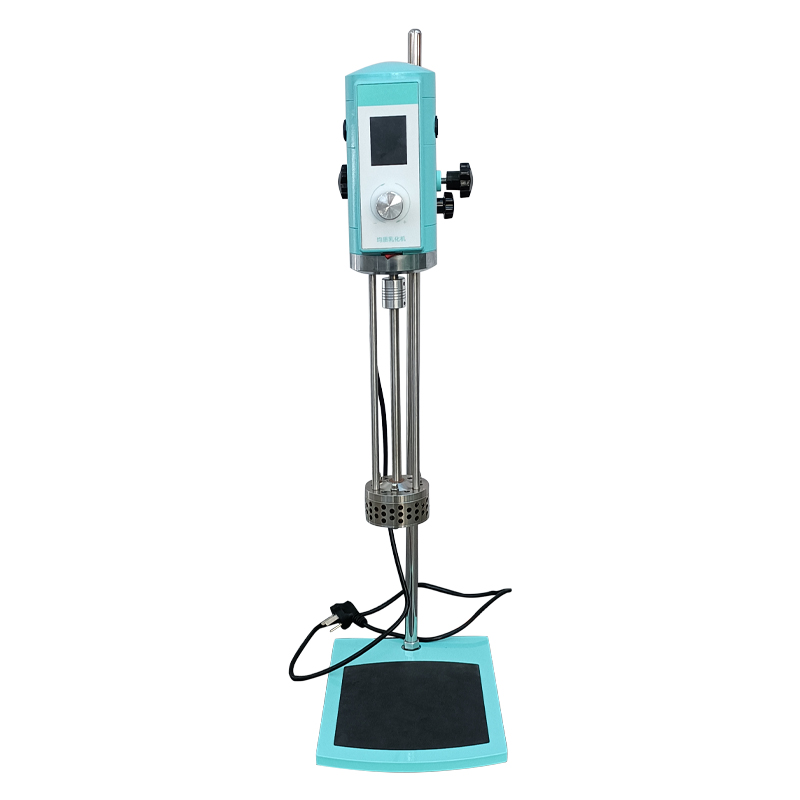

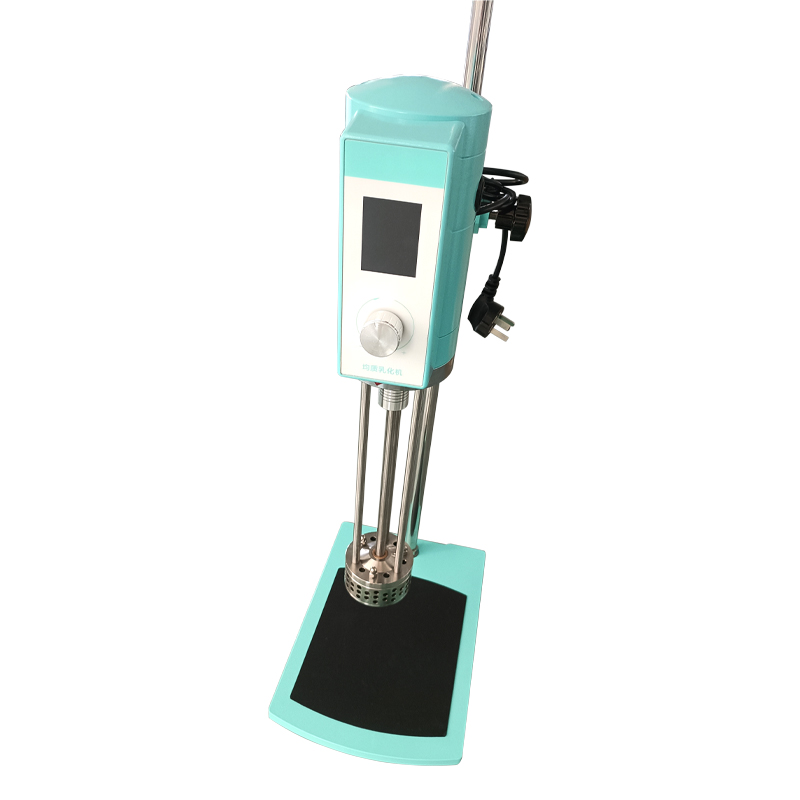

The WDHE series high-speed emulsifier features a blade-type rotor paired with a dual-layer stator, maintaining a precise and stable narrow gap between them. When the rotor spins at high speed, it creates a relative motion with the stator, subjecting the material inside the shearing chamber to high-frequency reciprocating shear forces.
Product Details
The WDHE series high-speed emulsifier features a blade-type rotor paired with a dual-layer stator, maintaining a precise and stable narrow gap between them. When the rotor spins at high speed, it creates a relative motion with the stator, subjecting the material inside the shearing chamber to high-frequency reciprocating shear forces. This process ensures thorough dispersion, emulsification, shearing, and homogenization, resulting in a stable and uniform mixture. The emulsifier is ideal for fine mixing applications requiring consistent quality and efficiency.
Product Features
LCD Display: Equipped with a clear and intuitive LCD screen, allowing users to easily monitor real-time operating data such as speed, time, and status, enhancing usability and control.
High-Speed Operation: Capable of reaching speeds up to 12,000 rpm, providing powerful and efficient processing for a wide range of applications.
Stepless Speed Regulation: Features smooth, continuous speed adjustment, enabling precise control over the emulsification process to meet diverse processing needs.
Large Processing Capacity: Supports a maximum processing volume of up to 40,000 mL, suitable for batch processing in both laboratory and industrial settings.
Technical Specification
Model | WDHE300 | WDHE500 |
Power Supply | 220V 50/60Hz | 220V 50/60Hz |
Power | 300W | 500W |
Speed Display | LCD display | LCD Display |
Rotational Speed Control | Stepless speed regulation | Stepless Speed Regulation |
Timing Control | 6000 minutes | 6000 minutes |
Torque Display | Yes | Yes |
Material in Contact with Substance | SS304 stainless steel | SS304 Stainless Steel |
Sleeve Material | Copper alloy | Copper Alloy |
Standard Working Head Type | Cavity-style blade | Cavity-style Blade |
Maximum Working Temperature | 120°C | 120°C |
Number of Standard Working Heads | 1 | 1 |
Speed Range | 2000–12000 rpm | 2000–13000 rpm |
Processing Capacity Range | Up to 20000 mL | 40000 mL |
Permissible Ambient Temperature | 5–40°C | 5–40°C |
Permissible Relative Humidity | 80% | 80% |
Process Type | Batch processing | Batch Processing |
Related Accessories | Work stand, base | Work Stand, Base |
Weight | Approx. 9 kg | Approx. 9 kg |
Packaging | Carton | Carton |

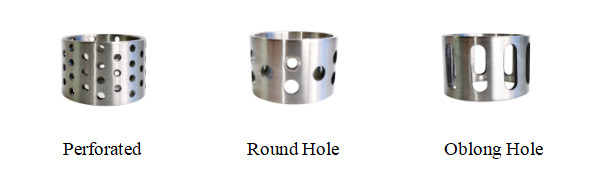

Blade Head Parameters
Stator Type | Maximum Applicable Viscosity (cP) |
Perforated | 5000 |
Round Hole | 8000 |
Oblong Hole | 10000 |
