Products
Homogenizer

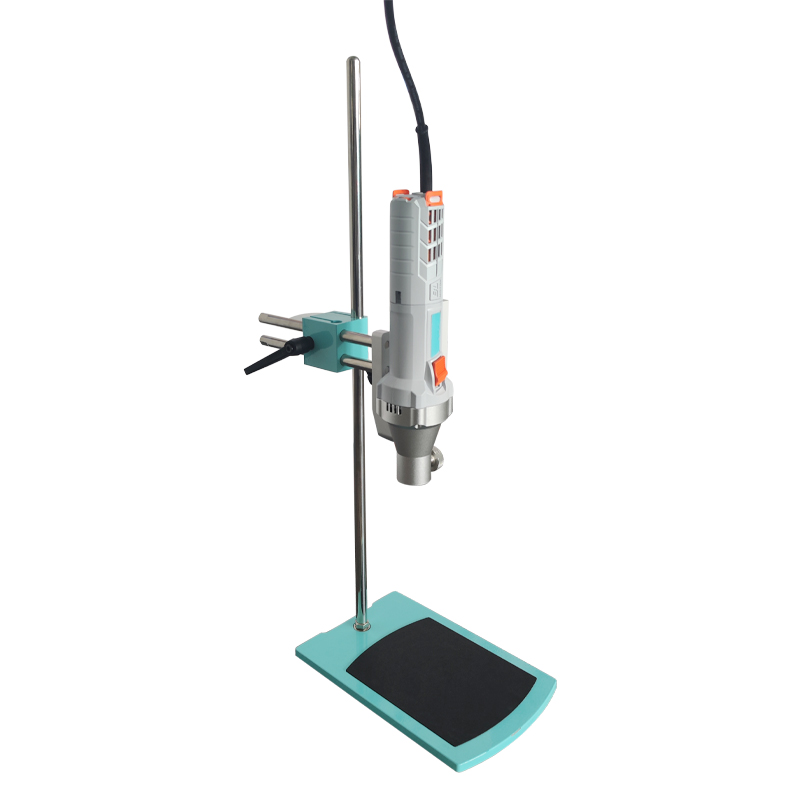

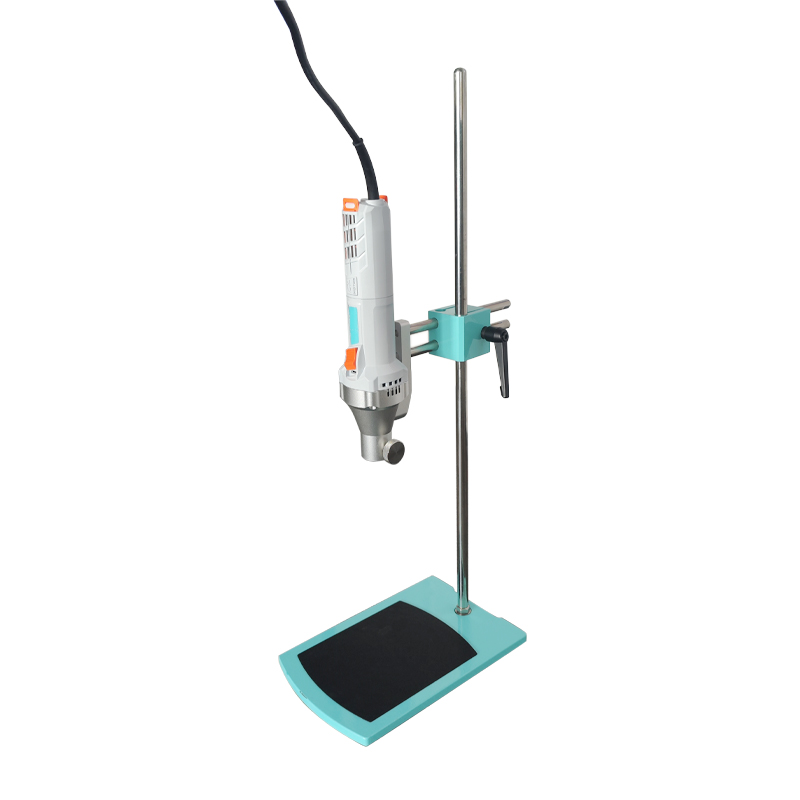

The WDH300 High-Shear Dispersion Homogenizer combines flexibility and convenience, and can be operated by hand. Equipped with an original German motor, it ensures more stable operation with lower noise.
Product Details
The WDH300 High-Shear Dispersion Homogenizer combines flexibility and convenience, and can be operated by hand. Equipped with an original German motor, it ensures more stable operation with lower noise. With a maximum speed of up to 30,000 rpm, it supports long-term continuous use. Compatible with over 20 types of working heads and capable of vacuum operation, it easily meets the demanding requirements of dispersion, emulsification, and homogenization experiments.
By utilizing a high-speed rotating rotor and a precision-engineered stator working chamber, the device generates powerful hydraulic shear, centrifugal compression, high-speed cutting, and impact forces. This enables thorough dispersion, emulsification, homogenization, crushing, and mixing of materials, ultimately delivering stable and high-quality results.
It is widely used in industries such as pharmaceuticals, biochemistry, food, nanomaterials, coatings, adhesives, personal care, printing and dyeing, petrochemicals, paper chemicals, polyurethane, inorganic salts, asphalt, silicone, pesticides, water treatment, and heavy oil emulsification.
Technical Specification
Model | WDH300 |
Power | 1300W |
Power Supply | 220V/50/60Hz |
Speed Range | 8000-30000 rpm |
Speed Display Method | Scale Display |
Speed Adjustment Method | Stepless Speed Regulation |
Processing Capacity | 200mL-20000mL(H2O) |
Standard Working Head | 25G(100-7000mL） |
IVaterial in Contact with Substances | SUS316L |
Sleeve Material Immersed in Substances | PTFE |
Speed Deviation | 1% |
Maximum Viscosity | 5000cP |
Process Type | Batch Processing |
Permissible Ambient Temperature | 5-40℃ |
Relative Humidity | 80% |
Weight | 1.8kg |
Protection Rating | IP20 |
Noise Level Without Dispersion Head | 70 dB(A) |
Instrument Dimensions | 320*210*670mm |
Cutter Head Parameters
6G(Processing Capacity: 1-10 ml, Suitable Viscosity: <500 cP) |
8G（Processing Capacity: 1-60 ml, Suitable Viscosity: <1000 cP） |
10G（Processing Capacity: 30-150 ml, Suitable Viscosity: <2000 cP） |
18G（Processing Capacity: 50-1500ml,Suitable Viscosity＜5000cP） |
18F（Processing Capacity: 50-1500ml,Suitable Viscosity＜5000cP） |
20G（Processing Capacity: 50-2000ml,Suitable Viscosity＜5000cP） |
20F（Processing Capacity: 50-2000ml,Suitable Viscosity＜5000cP） |
25G（Processing Capacity: 100-7000ml，Suitable Viscosity＜10000cP） |
25F（Processing Capacity: 100-7000ml，Suitable Viscosity＜8000cP） |
25G-ST（Processing Capacity: 100-7000ml，Suitable Viscosity＜15000cP） |
30G（Processing Capacity: 200-20000 ml, Suitable Viscosity: <15000 cP） |
