Products
Homogenizer

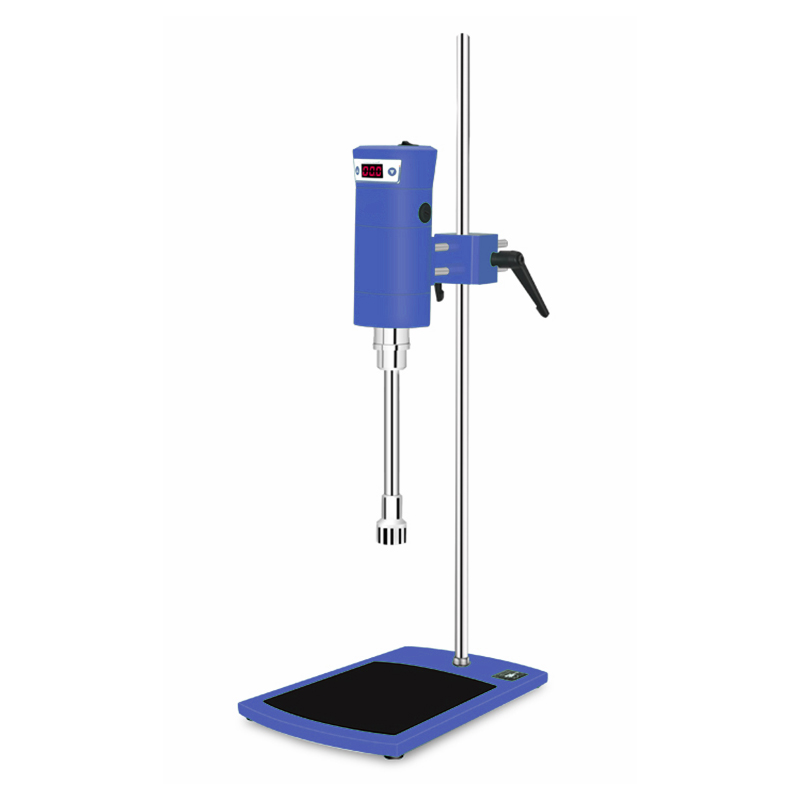

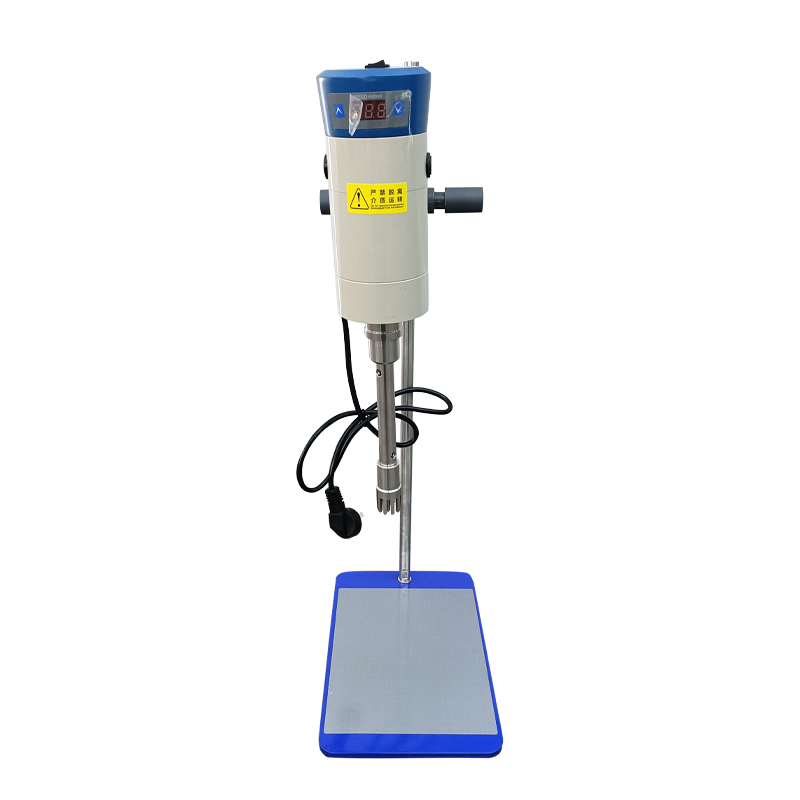

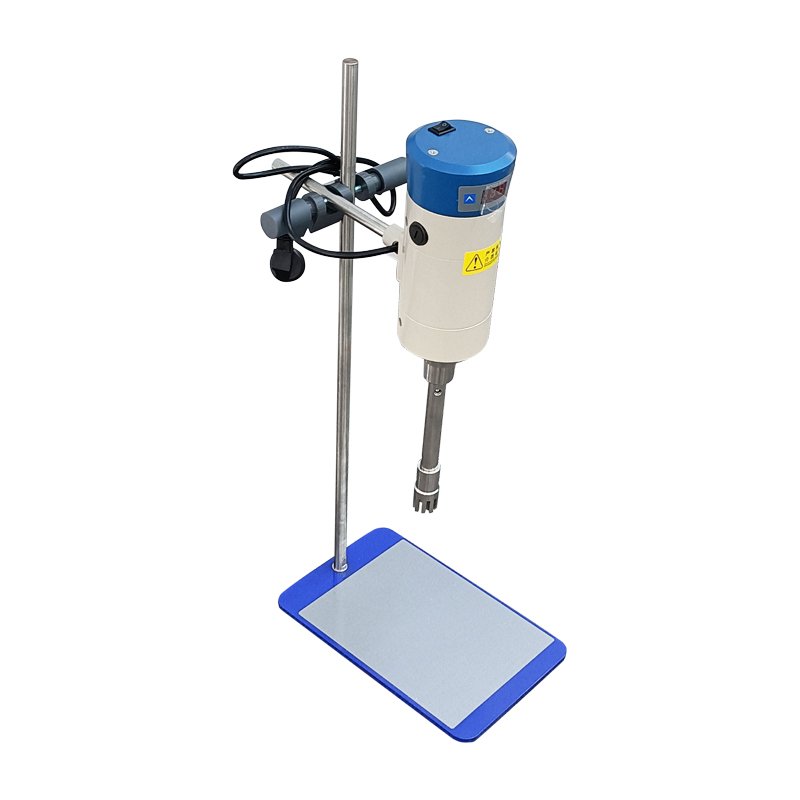

The WHDH series laboratory high-speed dispersing and homogenising machines include two models: WHDH200 and WHDH300. This series is driven by a compact series-excited miniature high-speed motor, specifically designed for crushing, dispersing, and homogenising experimental materials in liquid media.
Product Details
The WHDH series laboratory high-speed dispersing and homogenising machines include two models: WHDH200 and WHDH300. This series is driven by a compact series-excited miniature high-speed motor, specifically designed for crushing, dispersing, and homogenising experimental materials in liquid media. The unit features a precision-engineered structure, consisting of a high-density die-cast aluminium alloy drive motor housing, a high-quality stainless steel dispersing and homogenising working head, and a stable, speed-adjustable base. With features such as high-speed operation, strong power output, convenient working head assembly/disassembly, and easy operation, this equipment is widely used in sample pre-treatment processes across various laboratory applications.
Product Features
Precise Speed Control & Stable Operation
Equipped with an induction-type speed controller, the machine allows easy and precise speed adjustment, ensuring smooth and stable performance during use.
Easy Assembly & Flexible Coupling
The working head is connected to the drive motor via a coupling, making disassembly and installation quick and flexible—ideal for frequent changes in experimental setups.
High-Quality Materials with Excellent Corrosion Resistance
All components of the working head that come into contact with materials are made of high-quality stainless steel, offering excellent corrosion resistance and long-term durability.
High-Efficiency Drive with Compact Design
The drive motor uses a series-excited micro motor, delivering high output power in a compact form factor. It is engineered for both safety and reliability in laboratory environments.
Technical Specification
Model | WHDH200 | WHDH300 |
Speed range | 300-23000r/min | 300-18000r/mmin |
Processing volume | 30-1500mL | 150-13000mL |
Input Power | 280W | 510W |
Output Power | 200W | 300W |
Power supply | AC 220V 50Hz | AC 220V/100V 50/60IIz |
Rated torque | 68N.cm | 78N.cm |
Workhead Configuration | 12G,18G | 12G,18G,28G.36G |
working method | S2-5min intermittent | S2-5min intermittent |
Overall Dimension | 165*315*600mm | 170*310*590mm |
WHDH200 Cutter Head Parameters
Workinghead specifications | 12G | 18G |
Processing volume(H20) | 30-800mL | 50-1500mL |
Suitable viscosity | 1000mpa.s | 2000mpa.s |
Rotor line speed | 11s/m | 15s/m |
mntusion height | 25/85mm | 30/120mm |
Stator diameter | Φ12mm | Φ18mm |
Length of working head | 150mm | 190mm |
Dperating Temperature | 120%C | 120%C |
Working head material | SS304 | SS304 |
Workhead Bearing Material | PTEE | PTEE |
WHDH300 Cutter Head Parameters
Workinghead specifications | 12G | 18G | 28G | 36G |
Processing volume(H20) | 30-800mL | 50-1500mL | 100-8000mL | 150-13000mL |
Suitable viscosity | 1000mpa.s | 2000mpa.s | 6000mpa.s | 7000mpa.s |
Rotor line speed | 11s/m | 15s/m | 19s/m | 27s/m |
mntusion height | 25/85mm | 30/120mm | 60/155mm | 60/160mm |
Stator diameter | Φ12mm | Φ18mm | Ф28mm | Ф36mm |
Length of working head | 150mm | 190mm | 235mm | 240mm |
Dperating Temperature | 120%C | 120%C | 120℃ | 120℃ |
Working head material | SS304 | SS304 | SS304 | SS304 |
Workhead Bearing Material | PTEE | PTEE | PTEE | PTEE |
