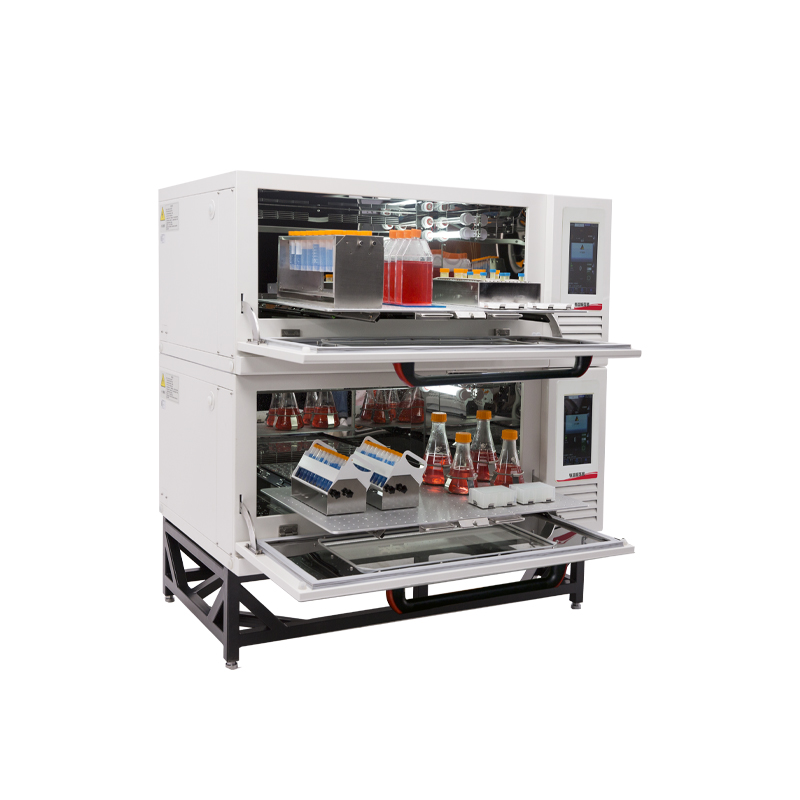

The stacked constant temperature incubator shaker is a common laboratory equipment used for the cultivation of cells and microorganisms. It can be stacked in one, two or three layers, providing users with a larger use space with a smaller footprint. It has temperature control and oscillation functions, and can create a suitable environment for the culture.

The maximum capacity of the WIS2500 series stackable constant temperature incubator is 250L. There are four models, namely WIS2500, WIS2500C, WIS2505, and WIS2505C. WIS2500C and WIS2505C have CO2 control function. For detailed differences between them, please refer to the parameter table below. The temperature range of this series is usually between 4℃ and 60℃, which can be precisely controlled. The oscillation speed is generally between 30 and 300rpm (revolutions per minute) to meet various experimental needs.

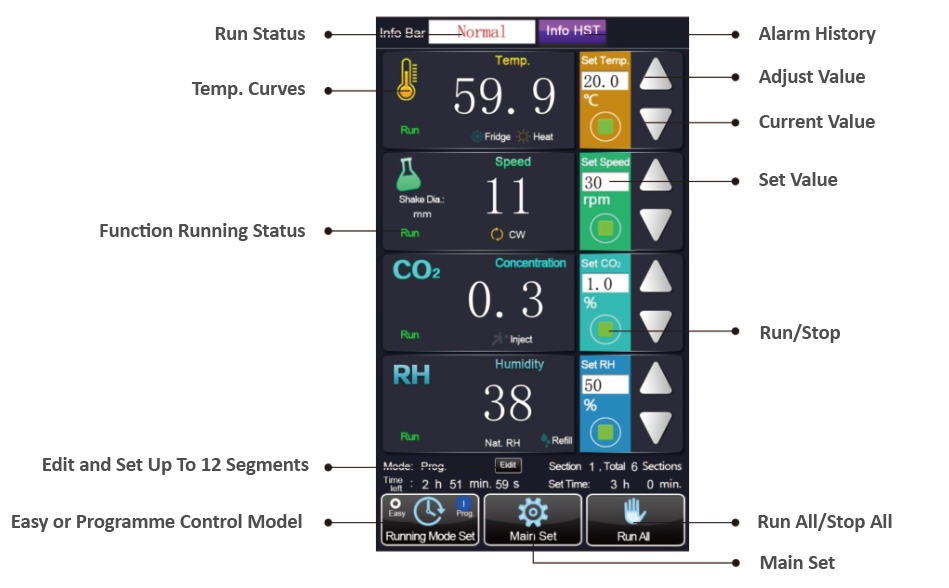

Smart touch screen, convenient and efficient operation

This shaker incubator is equipped with a highly sensitive capacitive touch screen, which responds to a light touch and is easy and comfortable to operate. The interface design is simple and intuitive, and all function options, setting parameters and real-time operation data are displayed on the same screen. The information is clear at a glance, which greatly improves the convenience and efficiency of operation.

Multiple safety protections to ensure safe operation

It has automatic screen lock, automatic screen shutdown and password protection functions to effectively prevent misoperation and intervention by unauthorized personnel, and improve the safety and reliability of equipment use.

Multi-parameter real-time curve, full control of operation status

The display supports real-time curve display of multiple operating parameters such as temperature, speed, concentration, humidity, etc., and can view historical data simultaneously to fully grasp the operation trend, which is convenient for experimental monitoring and data analysis.

Switch between Chinese and English interfaces, free and barrier-free operation

Built-in Chinese and English bilingual interfaces, users can switch freely according to usage habits to meet the operation needs of different users.

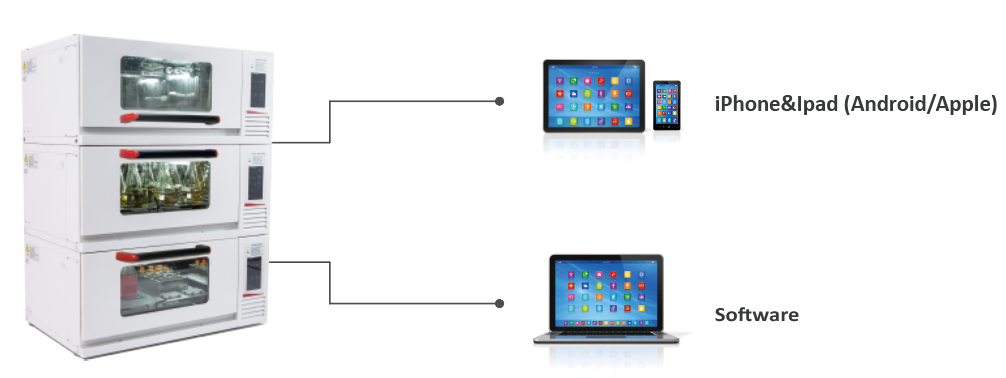

Flexible expansion, more secure remote monitoring (optional)

Optional remote WiFi monitoring module, realize wireless LAN or Internet remote mobile phone monitoring, support multiple mobile phones to view the same device simultaneously; optional computer monitoring software, realize computer remote monitoring through wired LAN, and support SMS alarm function to ensure the safety and stability of the experimental process.

Optional lighting function, support multi-segment programming operation

Support optional lighting system, can set up to 24 independent lighting programs, and can also be programmed and run synchronously with temperature to meet diverse experimental needs.

Pull-out rocking plate

The rocking plate supports the slide-out design, which can be easily loaded and unloaded after the fixture is pushed in and locked. The operation can be completed quickly with only a locking handle in the middle, which is labor-saving and efficient.

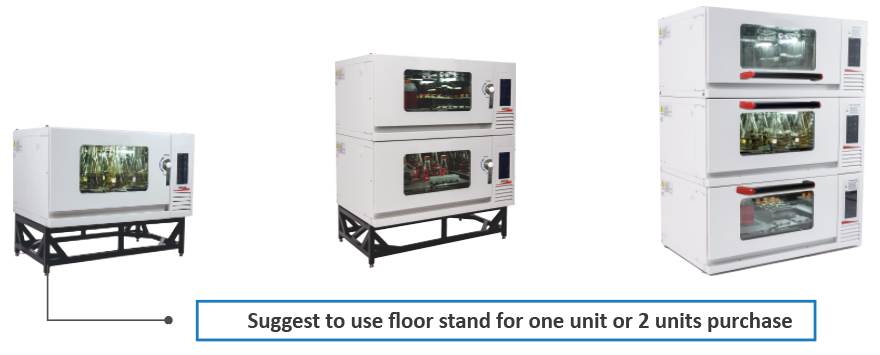

Modular stacking structure

Adopting modular design, it can be used independently by a single unit, or it can be flexibly stacked according to experimental needs. It supports up to three machines in vertical combination, saving experimental space and facilitating expansion and upgrading.

Two-way UV sterilization, comprehensive and efficient sterilization

Two sets of UV sterilization components are built into the cavity to achieve two-way sterilization up and down, effectively enhance the sterilization effect, reduce dead corners, and ensure the cleanliness and safety of the experimental environment.

Imported variable frequency compressor, energy-saving and efficient

The imported variable frequency compressor is used, which runs quieter and more stable, has excellent refrigeration efficiency, is durable and energy-saving, and provides reliable guarantee for long-term operation.

Ultra-quiet design creates a quiet working environment

The whole machine adopts noise reduction optimization design, and the noise is less than 55dB during operation. Even if it works in the same room with the equipment, it will not cause interference, bringing a quiet and comfortable experimental environment.

Technical Specifications
