WIS5000 Constant Temperature Incubator Shaker Cost-effective Laboratory Solution

The Welso WIS5000 series incubator shaker has a maximum capacity of 450L and supports two-layer stacking, which is suitable for batch culture of medium and large samples.

Product Details

The Welso WIS5000 series incubator shaker has a maximum capacity of 450L and supports two-layer stacking, which is suitable for batch culture of medium and large samples. The equipment adopts a fully enclosed waterproof design, and the rounded corner structure of the inner cavity is easy to clean. The inner cavity and the top of the shaking plate can be directly rinsed with a high-pressure water gun, and the drainage is smooth without sanitary dead corners. The shaking plate is equipped with a single locking handle, which can be easily operated with one hand, improving the convenience of the experiment. A small sliding observation plate is set on the front to facilitate real-time viewing of the internal cell status; UV lamps are equipped on both sides to ensure more comprehensive and thorough sterilization.

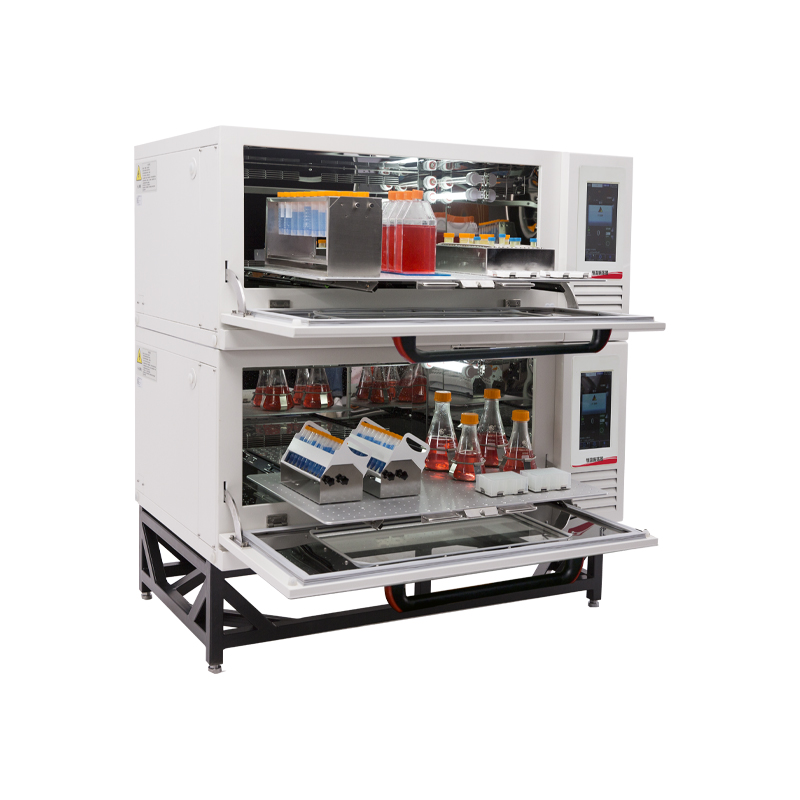

WIS5000 Incubator Shaker 1

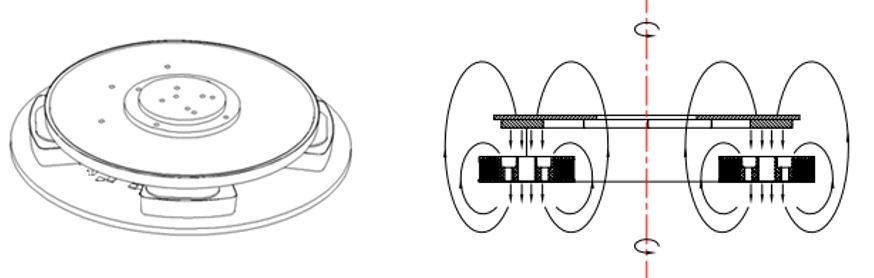

WIS5000 is equipped with a magnetic drive core system, which has multiple advantages such as low heat generation, maintenance-free, acid and alkali resistance, rust resistance, and waterproof fog. It abandons the traditional belt drive structure, avoids wear, breakage and frequent adjustments, and runs more stably and reliably. Its large torque output enables it to operate continuously and efficiently in complex and harsh experimental environments, with a longer service life, providing long-lasting and stable support for cell culture.

WIS5000 Incubator Shaker

Product Features:

Large culture space

The equipment capacity is up to 450L, which can meet the needs of large-scale cell and microbial culture.

High-definition touch interface

Equipped with a 10-inch high-resolution LCD touch screen, all parameters can be displayed simultaneously, and the operation is intuitive and convenient.

Compatible with large-volume containers

Sufficient internal space can accommodate 5L conical flasks to meet large-capacity culture needs.

Double-layer stacking design

Up to two devices can be stacked vertically to save laboratory space.

High-precision gas control

Built-in CO₂ infrared sensor and high-efficiency air intake filter to ensure the stability and cleanliness of the gas environment.

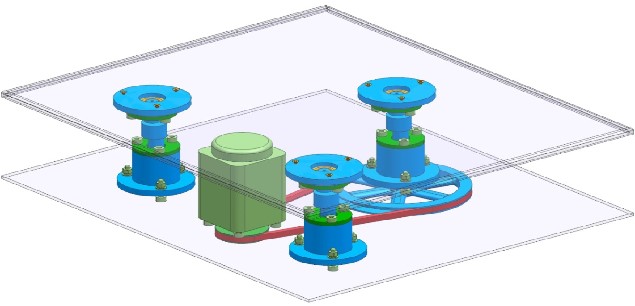

Triple eccentric drive system

Adopting a triple eccentric drive structure, the oscillation is stable, the operation is reliable, and the culture efficiency is effectively improved.

Technical Specifications

Model	WIS5000	WIS5000C	WIS50005	WIS50005C
Product Name	stackable Incubator Shaker,touch screen	stackable Incubator Shaker with CO2 Controller,touch screen	stackable Incubator Shaker,touch screen,shaker diameter 50mm	stackable Incubator Shaker with CO2 Controller,touch screen,shaker diameter 50mm
Shaking
Orbit Diameter	26mm		50mm
Speed	0 (stop), 30 - 300 rpm
Speed Accuracy	±1rpm
Temperature
Temp.Range	Room Temp.Minus 18℃-60℃(lowest Temp. is 4 ℃)
Temp.Accuracy	±0.1℃
Temp.Uniformity	±0.5℃(@37℃)
Power When Heating	≤850w
Power When Cooling	70~230w
CO2
CO2 Sensor	NA	IR	NA	IR
CO2 Control Range	NA	0-20%	NA	0-20%
CO2 Control Accuracy	NA	±0.1%	NA	±0.1%
Recover Time After Open Door 30s on CO2	NA	≤6min(@5%)	NA	≤6min(@5%)
Recover Time After Open Door 30s on Temp.	≤6min(@37℃)
Humidity
Humidity Type	NA	Evapor Naturally	NA	Evapor Naturally
Max.Humidity	NA	95%	NA	95%
General
Platform Dimensions	900x560mm
Capacity	450L
Max.load	20KG
Programmable Segments	12 Segments
illumination	LED Lamps on Left and Right Walls
Disinfection	UV Lamps on Left and Right Walls
Protect Set Parameters	Passwords Protect
Door Open Direction	Downward
Data Display	Temp, Speed Curve	Temp, Speed, CO2, RH	Temp, Speed	Temp, Speed, CO2, RH
Display	10" High-Res Color Touch Screen
Timer	0-999h59min
USB Export Data	Yes
Screen Data Display	Displays Most Recent 7 Days of Data
Operating Data Storage Cycle	More than 912 days
Data Storage Interval	1 min
Data Stored	Time, Temp, Speed, Status	Time, Temp, Speed, Status, CO2, RH	Time, Temp, Speed, Status	Time, Temp, Speed, Status,CO2, RH
Auto-Defrost	Yes
Auto Screen Off	Yes
Auto Screen Lock	Yes
2nd Platform Height	1256mm
Plateform with Rails	Yes
Noise Level	≤55dB(When compressor is running)
AuTo-recovery After Power Interuption	Yes
Power	≤950w	≤1000w	≤950w	≤1000w
Power Supply	AC 220V±22V, 50Hz/60Hz
RH Control	NA	Optional(10% above ambient humidity, up to 90%)	NA	Optional(10% above ambient humidity, up to 90%)
Mobile Monitor and Control by WIFI	Optional
PC monitor and Control by RS485	Optional
Window cover	Optional
Net Weight	325kg		325kg	330kg
Internal Working Height	430mm
External Dimensions	1400x886x(700+80 feet high)mm

FAQ

Q:How to monitor and control the incubator shaker?

A:User can operate on the instrument directly or monitor and control on the mobile phone.

Q:Are all models of incubator shakers stackable?

A:Yes, all non-benchtop incubator shaker is stackable. We suggest to use a base frame to support one unit or 2 units incubator shakers for better operation experience.

Q:Are the clamps, Mats and tray standard configurations of the incubator shaker？

A:No, they are optional. User can choose according to their requirements.

Q:Is Welso Incubator shaker for cells or bacteria culture?

A:We have both. Models with C ( carbon dioxide ) can be used for cell culture. Models without carbon dioxide can only be used for bacteria culture.

Q:What are the orbits of incubator shaker?

A:We have 2 orbits incubator shaker 26mm and 52mm.
