Products
Low Speed Centrifuge

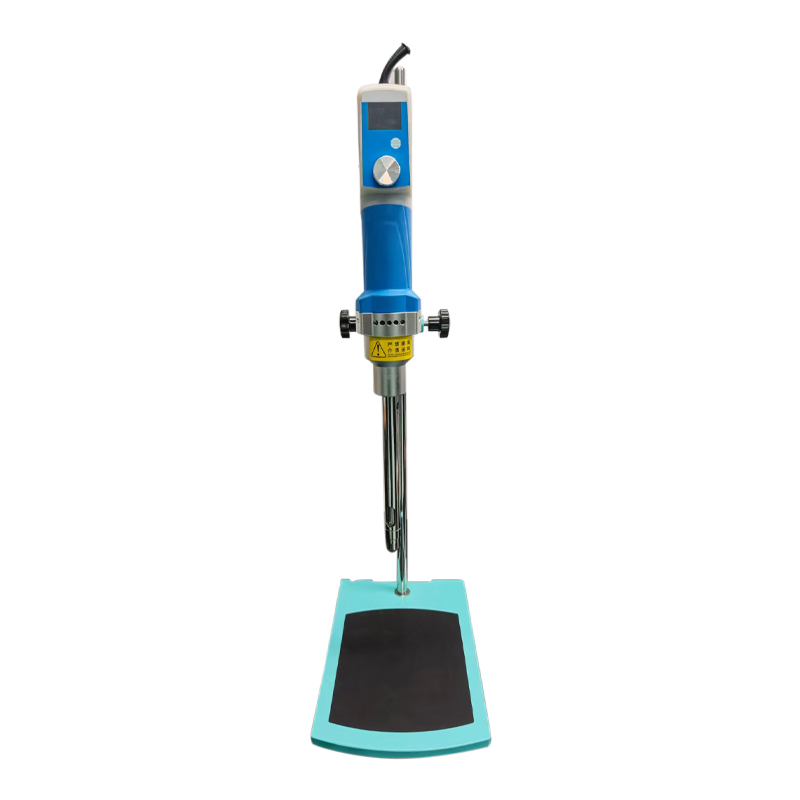

The WDH300D High-Shear Dispersion Homogenizer, originating from Germany, is a handheld device that offers both flexibility and convenience.
Product Details
The WDH300D High-Shear Dispersion Homogenizer, originating from Germany, is a handheld device that offers both flexibility and convenience. It is equipped with an imported brushless motor for stable and low-noise operation, featuring a built-in timer and temperature detection, and supports continuous operation for up to 8 hours. With a maximum speed of 26,000 rpm, support for vacuum operation, and over 20 interchangeable working heads, it easily meets the demands of high-intensity dispersion, emulsification, and homogenization experiments.
The device utilizes a high-speed rotating rotor in combination with a precision stator to generate powerful hydraulic shear, centrifugal compression, and high-speed cutting forces. This ensures thorough material dispersion, emulsification, homogenization, and mixing, resulting in stable, high-quality outcomes.
It is widely used in industries such as pharmaceuticals, cosmetics, food, nanomaterials, coatings, adhesives, petrochemicals, pesticides, water treatment, and heavy oil emulsification.
Technical Specification
Model | WDH300D |
Motor Type | Brushless DC Motor |
Display Type | Digital Display |
Voltage | 200-240V |
Frequency | 50~60Hz |
Rated Iput Power | 1050W |
Rated Output Power | 750W |
Maximum Iput Power | 1350W |
Maximum Output Power | 1050W |
Speed Range (No Load) | 4000-26000rpm |
Speed Range (Water Load) | 4000-26000rpm |
Maximum Processing Viscosity | 20000 cP |
Speed Accuracy | ±100 rpm |
Speed Display | LCD |
Speed Adjusmment Method | Knob Control |
Processing Capacity | 0.2-20000 mL |
Timer Range | 0-999 min |
Time Display | LCD |
Temperature Measurement Range | -10-199°C |

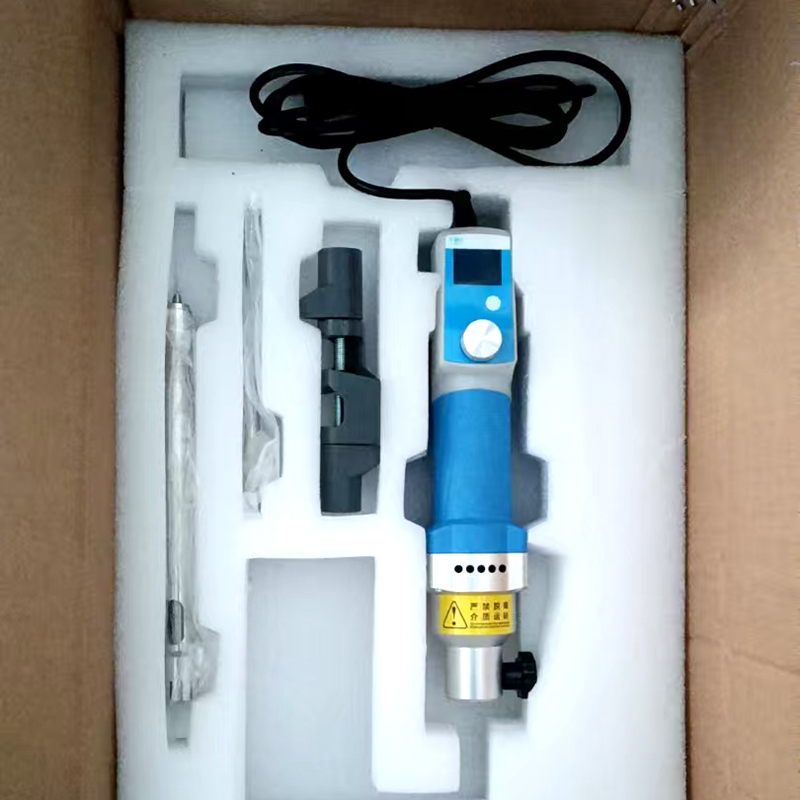

Standard Set | Main Unit + Blade Head + Flat Stand |
Main Unit Dimensions | 365*φ90 mm |
Main Unit Packaging Dimensions | 470*340*205 mm |
Set Dimensions | 200*315*780mm |
Set Packaging Dimensions | 803*400*140 mm |
Main Unit Net weight | 2.5 kg |
Main Unit Gross Weight | 2.9 kg |
Set Net weight | 9kg |
Set Gross Weight | 10 kg |

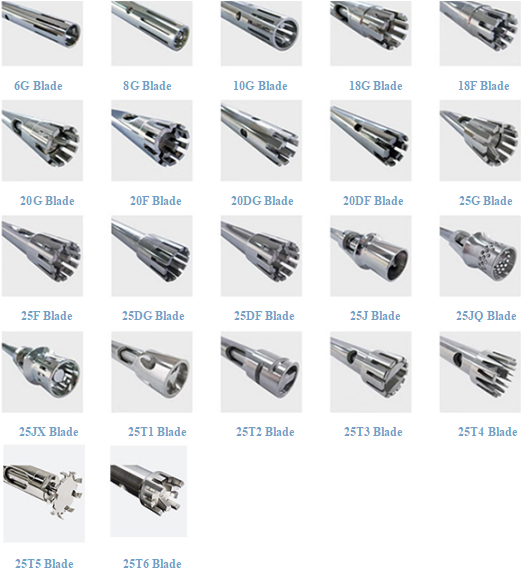

Cutter Head Parameters
Model | Processing Capacity (mL) | Viscosity | Material |
6G | 0.2-10 | 100 | 316L |
8G | 1-60 | 200 | 316L |
10G | 10-150 | 500 | 316L |
18G | 50-1500 | 3000 | 316L |
18F | 50-1500 | 2000 | 316L |
20G | 100-2000 | 5000 | 316L |
20F | 100-2000 | 5000 | 316L |
25G-ST | 100-7000 | 15000 | 316L |
25G | 100-7000 | 8000 | 316L |
25F | 100-7000 | 5000 | 316L |
25DG | 100-5000 | 8000 | 316L |
25DF | 100-5000 | 5000 | 316L |
25JX | 200-20000 | 10000 | 316L |
25JQ | 200-20000 | 10000 | 316L |
25T1 | 100-5000 | 10000 | 316L |
25T2 | 100-5000 | 8000 | 316L |
25T3 | 100-5000 | 5000 | 316L |
25T4 | 100-5000 | 8000 | 316L |
25T5 | 100-5000 | 10000 | 316L |
25T6 | 100-5000 | 30000 | 316L |
30JX | 300-40000 | 10000 | 316L |
30JQ | 300-40000 | 10000 | 316L |
30G | 150-10000 | 10000 | 316L |
30F | 150-10000 | 10000 | 316L |
30DG | 150-10000 | 7000 | 316L |
30DF | 150-10000 | 7000 | 316L |
