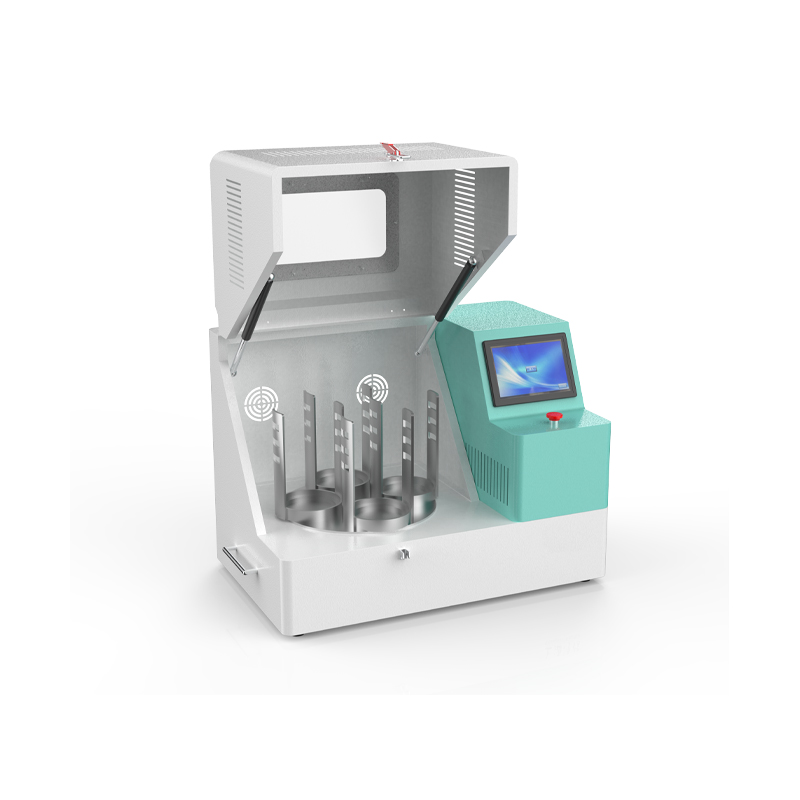

Welso WPBM series planetary grinders use advanced grinding technology to grind samples to nanometer level in a short time. The instrument is particularly suitable for dry or wet grinding of soft, medium-hard, extremely hard and brittle samples, as well as mixed processing, to ensure that each grinding result is highly repeatable. It is widely used in the fields of pre-treatment of physical and chemical analysis, colloid grinding, preparation of new materials and mechanical alloys.

Working principle:

When the equipment is started, the motor drives the sun wheel to rotate, and the grinding jar on the sun wheel rotates around its own axis, and the rotation direction is opposite to that of the sun wheel. The speed ratio is usually 1:-2.3. Under the influence of the self-rotation deflection force, the grinding ball releases a large amount of kinetic energy, violently hits the sample, and generates friction with the inner wall of the grinding, quickly crushing the sample to the nanometer level.

Features

Suitable for long-term sample preparation and continuous operation

Designed for efficient batch grinding to ensure stable and continuous sample processing.

Adjustable speed, smooth operation

Can grind samples to micron (dry grinding) or nanometer (wet grinding) fineness to meet various grinding needs.

Automatic reverse operation function

Prevents sample accumulation during grinding and ensures uniform processing.

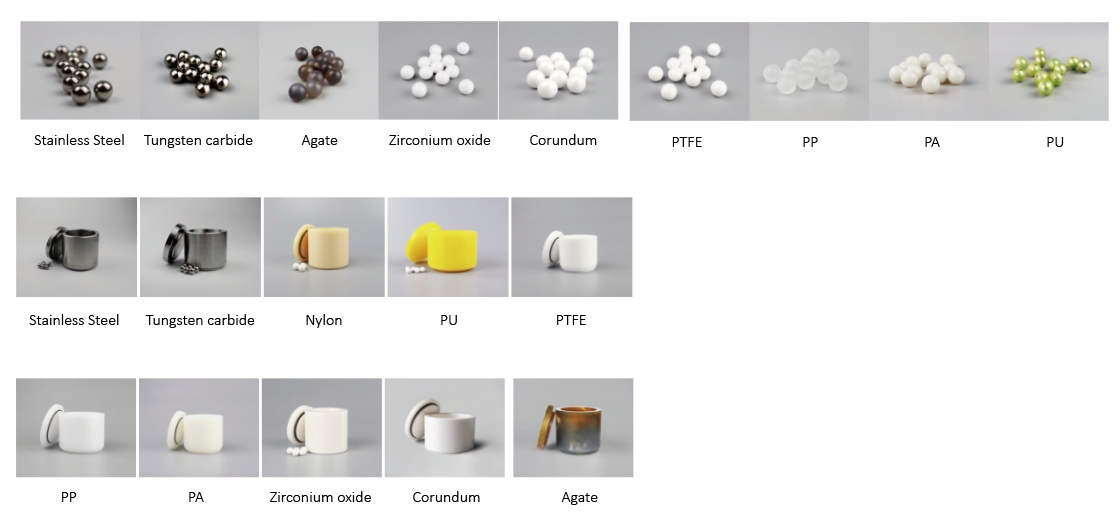

Multi-material grinding jar selection

Grinding jars of various materials are provided according to different sample types to meet special needs.

Advanced operation interface

Simple and intuitive, easy to set up and operate, and enhance the user experience.

Application areas

Medical: tablets, herbal medicines

Chemical: chemical products

Biological: bones, hair

Environmental: soil, plants, seeds

Food: coffee beans, tobacco

Geological: clay minerals, limestone, concrete, coal, metals

Industrial: paper, glass, fiber, ceramics, quartz, wood, paint

Technical Specifications
